Worm Reduction Winch Manufacturer & Supplier

Confirming to IS:

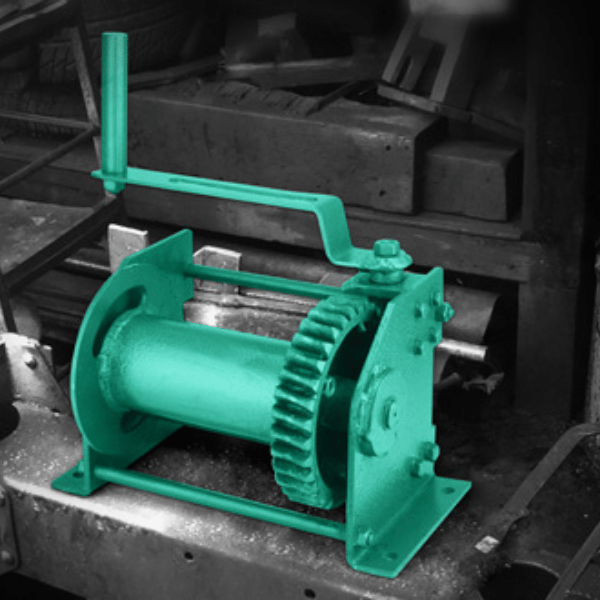

Supported by the proficient and adroit professionals, we are manufacturing a wide range of Worm Gear Winch Machine. Precisely engineered under the strict guidance of our experts, these machines are available in 250 kg to 2 Tons of capacity. Find usage in construction, automobile and engineering industries, these gear winch machines are suitable for loading, unloading & pulling of heavy loads.

KEY SELLING POINTS

• Unmatched efficiency
• Impeccable performance

• Durability

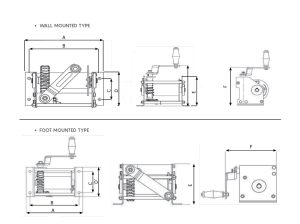

Worm-gear-hand-winch

Technical Specifications:

Model HWW1/HWF1 HWW2/HWF2 HWW3/HWF3
Capacity TON 0.5 1 1.5
Wire Dia MM 6 8 12
Drum Winding capacity MTR 40 30 30
Hand Effort KG 9 15 21
Dimension A MM 307 352 382
B MM 277 320.5 350.5
C MM 102.5 133 167
D MM 162.5 183 230
E MM 193 213 280
F MM 259 280 350
Packing measurement (LXWXH) CM 44X36X31 55X44X50 55X46X55
Net weight KG 11.5 17 25
Gross Weight KG 22.5 30 39
Note:- Due to continuous development and improvement specifications listed above may be changed without notice.
