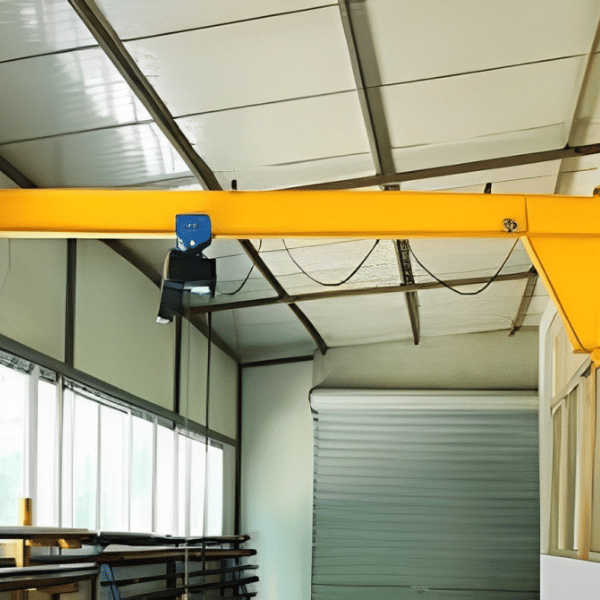

Wall Mounted Jib Cranes

Globe make Wall or Column mounted Jib Cranes are best suited for work station application. Wall Mounted jib cranes are constructed out of high grade steel components and are designed for trouble free industrial use. These cranes are mounted or building column made from steel. Special design is also available for mounted the Jib crane on RCC columns. Available in capacity ranging from 0.5 MT to 5 MT with a jib Length of Maximum 7 meters, these cranes serve the need of workshops without use of EOT Crane.

The Jib is made from rolled beams. In over braced construction, tie members are provided to achieve optimum weight of the jib. For smaller capacities are outreach, the jib is also available in under braced construction. Articulated Jib arm is also available to meet special needs of workshop. The slewing motion is available in both manual as well as motorized variety.

Specially designed heavy duty wall brackets for jib mounting.

VARIANTS AVAILABLE:

• Degree of swell: 180, 270 & 360 Degree.
• Swell Operation: Manual & Motorized.
• Lifting Machineries :

• Manual Chain Pulley Block with Monorail travelling trolley.
• Electric chain hoist.
• Electric Wire Rope Hoist.

Technical Specification:

Model			GWRH	GWRHM1-82	GWRHM1-84	GWRH	GWRHM2-84	GWRH	GWRH M3-104	GWRH M3-124	GWRH	GWRH	GWRH M5-184
Model			M0-82	GWRHM1-82	GWRHM1-84	M2-82	GWRHM2-84	M2-104	GWRH M3-104	GWRH M3-124	M4-144	M5-144	GWRH M5-184
Capacity		TON	0.5	1	2	2	3	5	5	7.5	10	10	15
Standard lifting height		MM	5	6	6	6	6	6	6	6	6	6	6
Hoisting speed		MPM	6	6	3	4	3	3	3	3	3	3	3
Hoisting motor		K.W	0.75	1.5	1.5	2.2	2.2	3.7	3.7	5.5	7.5	7.5	11
Motor Specifications		40 % CDF, 150 Starts/Hr, 50 Hz, 415V, 3 Phase, AC, Squirrel cage Induction Motor, IE2.
No. of falls (Rope)		Nos.	2	2	4	2	4	4	4	4	4	4	4
Rope Diameter		MM	8	8	8	8	8	10	10	12	14	14	18
Rope Construction		6 x 36 / 37, Fibre Core (FMC) /1770 N/MM Sq., Ungalvanised, Breaking Strength – 40KN.
	A	MM	385	425	425	480	480	480	–	–	–	–	–
	B	MM	115	125	125	150	150	150	–	–	–	–	–
	C	MM	200	290	300	360	360	360	415	415	500	500	–
	D	MM	700	750	920	950	1000	1100	1200	1250	1400	1400	–
	E	MM	300	380	380	460	460	460	585	585	655	655	–
Dimensions	F	MM	300	380	380	400	400	400	580	580	580	580	–
	G	MM	720	830	1050	1040	1040	1040	1090	1090	1200	1200	–
	L	MM	265	260	260	375	375	375	280	280	315	315	–
	H	MM	6000	6000	6000	6000	6000	6000	6000	6000	6000	6000	–
	J	MM	390	530	530	720	720	720	830	830	1000	1000	–
	K	MM	600	740	750	840	840	840	–	–	–	–	–
Recommended ISMB		MM	150 x 75 to			200 x 100 to		250 x 125 to		300 x 140 to
Sizes		MM	200 x 100			350 x 140		450 x 150		600 x 210
Net Weight		KG	160	216	240	400	460	540	800	900	1200	1250	1400
Note :- Due to continuous development and improvement specification listed above may be changed without notice.

cranes

Single Girder

Double Girder

Gantry / Goliath

Manual Chain Pulley Block

Monorail Traveling Trolley

Manual Winch

Electric Winch

Tripod

Hoist

Jib Crane

Mobile Floor Crane

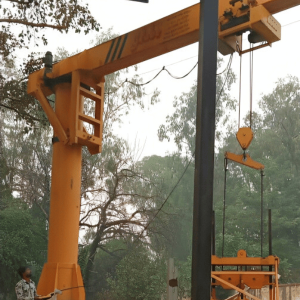

Column Mounted Jib Cranes
