Under Slung Crane Manufacturer and Supplier

Relevant IS 807, 3177, or 4137.

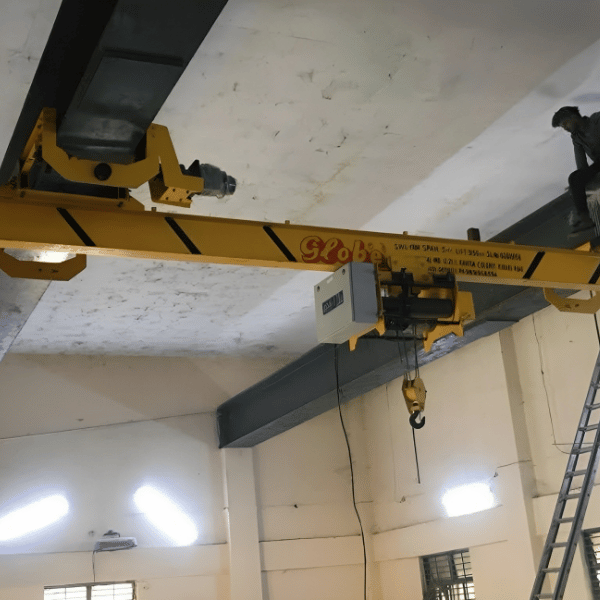

Under slung cranes are mostly used where the headroom in a factory is limited or the structure does not allow any other means of supporting the crane other from the roof. Special building characteristics often require a special crane design. Under slung Traveling cranes provide an optimal solution where the building structures make the normal traveling cranes less suitable. The main feature is that the crane track is not fastened to pillars but to the beams of the building. Over and above these special requirements the Single Girder under slung traveling cranes offer the advantage of very small trolley approach dimensions and as a result an optimal utilization of the building width.

Under Slung Electric overhead traveling cranes are designed & manufactured in accordance with IS 3177 considering adequate factor of safety with respect appropriate duty classifications. A wide range of load capacity ranges from 0.5 T up to 10 T and spans of up 25 m being manufactured by us.

STANDARD FEATURES:

Design: Compact dimensions, easy to operate and easy to maintain, modular design with direct fitment at Tie beams or any supporting structure.

Structure: Radio graphed butt welded joints ensure defect free safe rigid structure. The material of construction confirms to IS 2062 & the Bridge designed for minimum vibrations.

Motors: Crane uses sturdy cylindrical/conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP 54 protection, S4, Crane Duty.

Gear boxes: Precision helical/ spur gear units with case-hardened gears, high-grade surface treatment and permanent oil/grease lubrication

Brakes: Electromagnetic DC Disc brakes featuring automatic braking on power failure (fail safe).

Electrical panel: Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance as well as reliable operation, with fuse-less circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.

Painting: Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.

SOME SPECIAL & OPTIONAL FEATURE:

• Limit switches to prevent over hoisting & over lowering of hook

• Light weight Push button stations, handy, easy to operate, PVC unbreakable.

• Variable frequency drives.

• Limit switches & brakes in C.T & L.T Motions,

• Radio Remote controls for wireless controls.

INDUSTRIAL SEGMENTS:

• Construction industry

• Cement industry

• Steel Plants

• Paper Plants

• Chemical Plants

• Dock YardsTop of Form

• Plastic Moulding Units.
