Single Girder EOT Crane Manufacturers & Supplier in India

STANDARD FEATURES:

Design: Compact dimensions, easy to operate and easy to maintain, modular design with direct fitment at Tie beams or any supporting structure.

Structure: Radio graphed butt welded joints ensure defect free safe rigid structure. The material of construction confirms to IS 2062 & the Bridge designed for minimum vibrations.

Motors: Crane uses sturdy cylindrical/conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP 54 protection, S4, Crane Duty.

Gear boxes: Precision helical/ spur gear units with case-hardened gears, high-grade surface treatment and permanent oil/grease lubrication

Brakes: Electromagnetic DC Disc brakes featuring automatic braking on power failure (fail safe).

Electrical panel: Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance as well as reliable operation, with fuse-less circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.

Painting: Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.

SOME SPECIAL & OPTIONAL FEATURE:

• Limit switches to prevent over hoisting & over lowering of hook

• Light weight Push button stations, handy, easy to operate, PVC unbreakable.

• Variable frequency drives.

• Limit switches & brakes in C.T & L.T Motions,

• Radio Remote controls for wireless controls.

INDUSTRIAL SEGMENTS:

• Construction industry

• Cement industry

• Steel Plants

• Paper Plants

• Chemical Plants

• Dock YardsTop of Form

• Plastic Moulding Units.

Technical Specifications:

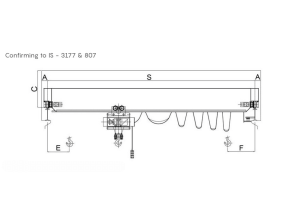

Model	SWL M.T	Span ‘S’	Head Room ‘C’	Wheel Base	Hook Approach E/F	End Clearance A	Wheel Load Per Wheel  (Approx)	Weight of Crane
								KGS(APPROX)
	TON	MTR	MM	MM	MM	MM	KG	KG
GSG-1	1	8	650	1600	700	200	1000	1700
		12	750	2400	700	200	1200	2500
		16	800	3200	700	200	1400	3250
		20	850	4000	700	200	1775	4700
GSG-2	2	8	750	1600	750	200	1600	2000
		12	800	2400	750	200	1850	2900
		16	850	3200	750	200	2000	3800
		20	900	4000	750	200	2400	5200
GSG-3	3	8	800	1600	850	200	2200	2500
		12	850	2400	850	200	2450	3500
		16	900	3200	850	200	2650	4300
		20	1100	4000	850	200	3125	6200
GSG-5	5	8	800	1600	950	250	3400	2900
		12	900	2400	950	250	3725	4200
		16	1000	3200	950	250	4000	5300
		20	1100	4000	950	250	4450	7100
GSG-7.5	7.5	8	850	1600	1000	250	5200	5100
		12	1000	2400	1000	250	5200	5100
		16	1100	3200	1000	250	5650	6700
		20	1200	4000	1000	250	6350	4400
GSG-10	10	8	900	1600	1100	250	6350	4400
		12	1000	2400	1100	250	6750	6000
		16	1200	3200	1100	250	7200	7800
		20	1300	4000	1100	250	7500	9300
GSG-15	15	8	1000	1600	1200	250	9500	6200
		12	1100	2400	1200	250	9850	7600
		16	1250	3200	1200	250	10300	9600
		20	1400	4000	1200	250
Note:- Due to continuous development and improvement specifications listed above may be changed without notice.

NOTE:

• Above specifications are for Class II Medium Duty Cranes

• Above dimensions are foe Cranes having 6 Mtr. Lift. There may be minor deviations in dimensions for higher height of Lift.

• ‘Globe’ reserve the right to effect any designs or dimensional charges without Notice.
