SALIENT FEATURES :

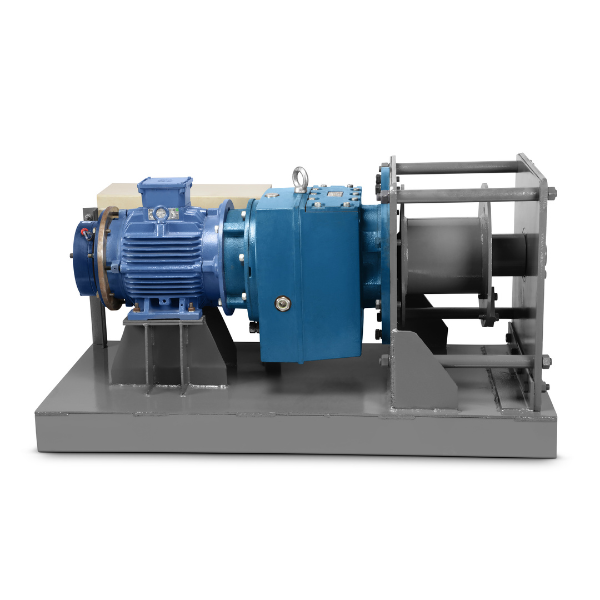

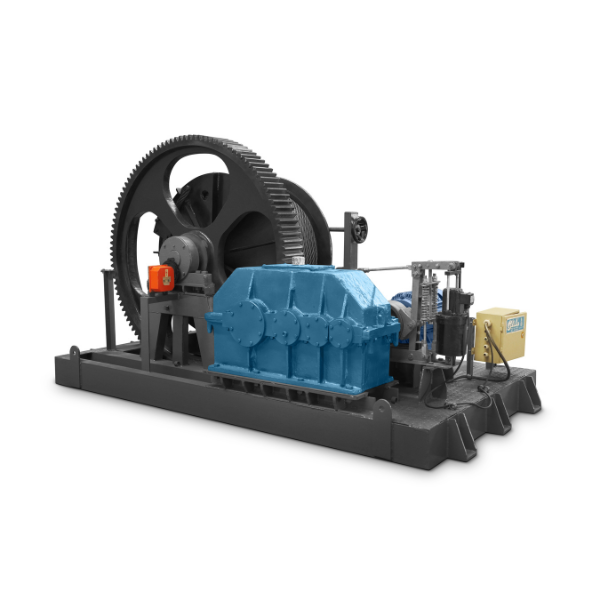

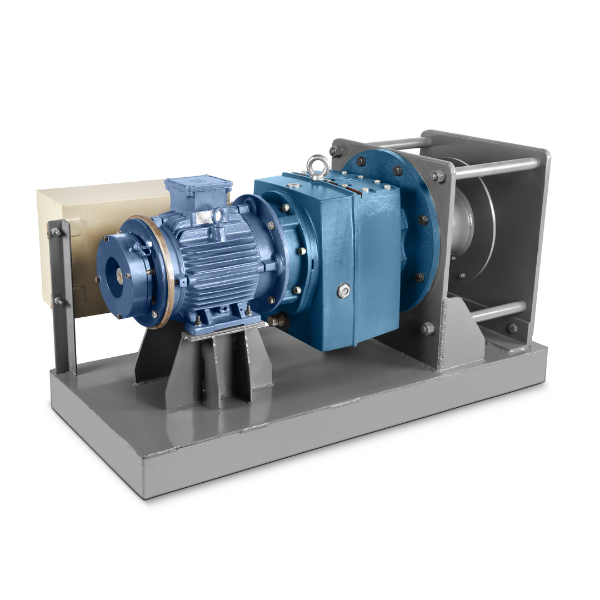

Design: “Globe” Power Driven Winch Machines are designed as per IS-9507-1979 and are suitable for Heavy Duty Pulling applications. Speeds other then given in technical data can also be available. Generally, Winches with Right Hand Operation are manufactured; however, the same can supplied with left hand Operation also as per specific requirement only.
Base Frame: Fabricated with Rolled Steel Sections/Plates properly ribbed, floored with Chequerred plate for working area, Lifting lugs, Anchoring Holes for foundation.
Reducers: 1st stage reduction with Worm Reduction / Helical Gear Box of reputed make & other reduction with open Spur Gears & pinions.
Rope Drum: Steel fabricated Rope drums duly machined, with flanges at both ends suitable for standard winding capacity 100 Mtr. of Wire Rope. Drums with larger winding capacity are also available.
Wire Rope: 6X19, IWRC construction, best Plough steel conforming to IS-2266 is supplied with Winch machine at extra cost.
Motor: High Starting Torque, Class ‘B’ Insulation, 40% CDF, 150 Starts/Hr, 415V, 50Hz, 3 Phase, A.C. Induction, Squirrel cage/Slippring motors conforming to IS-325 of reputed make like CROMPTOM/MARATHON/BHARAT BIJLEE LTD. etc.
Control & Control Panel: The Winch is operated by Push Button Station/Controller at 110V, fixed on machine. The control Panel is equipped with Triple Pole Reversing Contactors, MCB’S etc. of reputed make like ABB/SCHNEIDER/SIEMENS are housed in dust & vermin proof steel sheet panel Box. A step down transformer is also provided. Overload relay with Single Phasing protections are provided at extra cost.
Brake: Electromagnetic/Electro Hydraulic thruster, Double Shoe Type Brake and Hand Operated brake provided as per requirement.
Limit Switch: Rotary Type Geared limit Switch is provided to prevent over hoisting/Travelling at extra cost, if required.
Test: All machines are tested at 25% overload.
Warrantee: 12 months warrantee from the date of delivery against any manufacturing defect at Ex. Works basis.
Improvements: We reserve the right of effecting any Technical improvement without any Prior notice.
Technical Specifications :
| CAPACITY in Ton |
ROPE SPEED Mtr. /Min. |
Winding Capacity/ No. Of Layer | MOTOR K.W | ROPE DIA (mm) Suggested |
TYPE OF GEAR BOX |
| 1 Ton | 6 | 100 Mtr./3Lyr | 1.5 | 8 | Worm |
| 9 | 100 Mtr./3Lyr | 2.2 | Worm | ||
| 2 Ton | 4.6 | 140 Mtr./4Lyr | 2.2 | 10 | Worm |
| 7.5 | 140 Mtr./4Lyr | 3.7 | Worm | ||
| 3 Ton | 5.2 | 100 Mtr./3Lyr | 3.7 | 12 | Worm |
| 200 Mtr./4Lyr | Worm | ||||
| 7.5 | 100 Mtr./3Lyr | 5.5 | Worm | ||
| 200 Mtr./4Lyr | Worm | ||||
| 5 Ton | 6.5 | 100 Mtr./3Lyr | 7.5 | 16 | Worm |
| 200 Mtr./4Lyr | Worm | ||||
| 300 Mtr./ 4Lyr | Helical | ||||
| 500 Mtr./6Lyr | Helical | ||||
| 8 | 100 Mtr./3Lyr | 9.3 | Worm | ||
| 200 Mtr./4Lyr | Worm | ||||
| 300 Mtr./ 4Lyr | Worm | ||||
| 500 Mtr./6Lyr | Helical | ||||
| 7.5 Ton | 4.4 | 100 Mtr./3Lyr | 7.5 | 20 | Helical |
| 200 Mtr./4Lyr | Helical | ||||
| 300 Mtr./ 4Lyr | Helical | ||||
| 500 Mtr./6Lyr | Helical | ||||
| 5.5 | 100 Mtr./3Lyr | 9.3 | Helical | ||
| 200 Mtr./4Lyr | Helical | ||||
| 300 Mtr./ 4Lyr | Helical | ||||
| 500 Mtr./6Lyr | Helical | ||||
| 10 Ton | 4.8 | 100 Mtr./3Lyr | 11 | 22 | Helical |
| 200 Mtr./4Lyr | Helical | ||||
| 300 Mtr./ 4Lyr | Helical | ||||
| 500 Mtr./6Lyr | Helical | ||||
| 15 Ton | 4.5 | 100 Mtr./3Lyr | 15 | 25 | Helical |
| 200 Mtr./4Lyr | Helical | ||||
| 300 Mtr./ 4Lyr | Helical | ||||
| 500 Mtr./6Lyr | Helical | ||||
| 20 Ton | 4 | 500 Mtr./5Lyr | 18.5 | 28 | Helical |
| 1000 Mtr./6Lyr | Helical |
Note :-1. Wire Rope selected as per 1960 N/mm² Tensile/Steel Core.
2. Due to continuous development and improvement specifications listed above may be changed without notice.
SPECIAL FEATURES & OPTIONS AVAILABLE:
• State-of-the-art designs confirm to Indian & International standards.
• Steel fabricated seamless Drum duly machined, with flanges at both ends.
• Geared type limit switch for extra protection.
• Optional manual braking through Ratchet & pawl arrangement.
• Steel core hoist rope having minimum factor of safety of 6.
• Gears & Pinions are made from alloy steels, long life, reduced noise level & high efficiency.
