SALIENT FEATURES

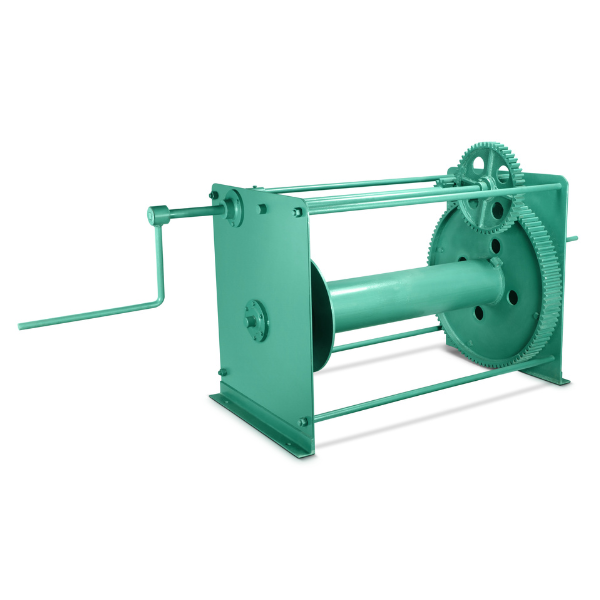

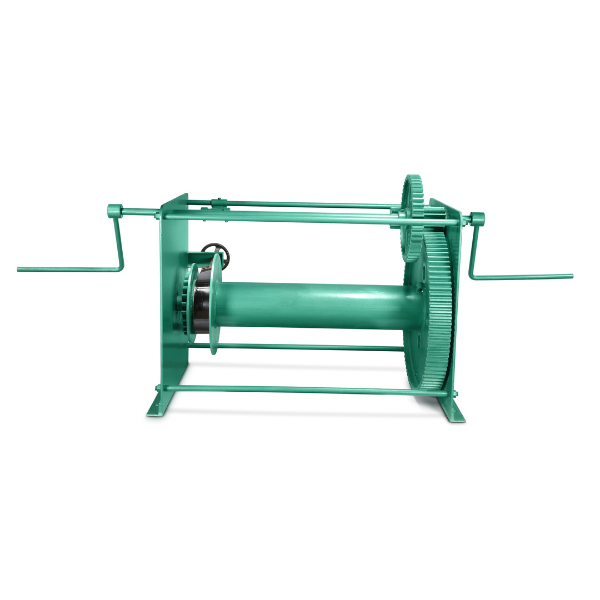

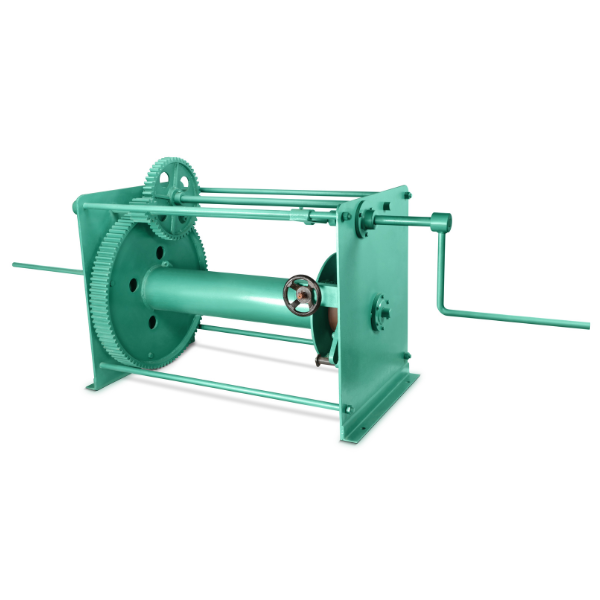

Application: “GLOBE” Manual crab winch is used for pulling heavy loads, erecting pillars and poles, Tensioning Electric Lines. It also used for lifting loads.
Gears: Crab Winch is a Multi Geared Machine viz
• Drive Gear
• Reduction Gear
• Pinion Gear
• Main Load Gear mounted on tow numbers of ball bearing. These are fabricated from tested steel, machined & hob cut teeth.
Rope Drum: It is of M.S pipe ERW / Seamless welded at both ends with flanges.
Body Plates: M.S Tested Plates conforming to IS: 226-1975.
Brake: Two numbers of Brakes are provided for better safety.
Pawl & Ratchet Brake to prevent reverse movement of the Drum on load.
Shoe Type Brake with replaceable Brake- lining for Extra safety.
Speed: It can be varied by shifting Gears.
Operating Handles: Two operating Handles are provided with each machine. Handles are well designed to pull heavy loads with the least effort.
Test: All machines are tested at 25% overload.
Guarantee: 12 Months guarantee from the date of Delivery against any manufacturing defect at Ex. Works basis.
Improvement: We reserve the right to effect any Technical improvement without any notice.
Technical Specifications:
| Capacity | TON | 1 | 2 | 3 | 5 | 10 | 15 | 20 | |
| Drum Dia | MM | 160 | 160 | 215 | 215 | 270 | 355 | 400 | |
| Drum Length | MM | 300 | 400 | 500 | 560 | 800 | 1000 | 1200 | |
| Suggested Wire Rope Dia | MM | 8 | 10 | 12 | 16 | 22 | 25 | 28 | |
| Drum Winding capacity | MTR | 110 | 125 | 125 | 125 | 165 | 200 | 250 | |
| Flange Dia | MM | 285 | 380 | 400 | 500 | 600 | 750 | 900 | |
| Dimension | A | MM | 490 | 610 | 730 | 960 | 1140 | 1440 | 1700 |
| B | MM | 360 | 480 | 530 | 680 | 965 | 1140 | 1300 | |
| C | MM | 600 | 750 | 900 | 980 | 1300 | 1700 | 1900 | |
| D | MM | 556 | 706 | 842 | 920 | 1180 | 1550 | 1750 | |
| E | MM | 245 | 320 | 375 | 490 | 715 | 865 | 1000 | |
| Net weight | KG | 90 | 156 | 218 | 430 | 835 | 1340 | 1827 | |
Note:- Due to continuous development and improvement specifications listed above may be changed without notice.
