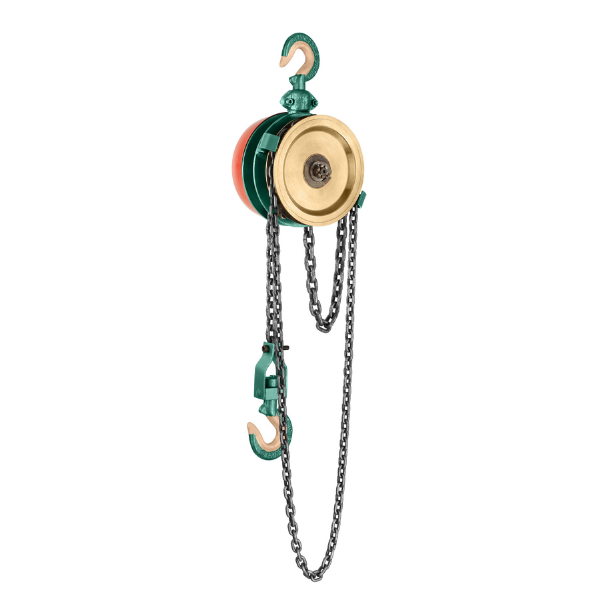

Chain Pulley Block Robo

A manual chain pulley block, often referred to as a chain hoist or block and tackle, is a simple and versatile lifting device used to raise or lower heavy loads manually. It consists of a hand-operated chain wheel (also known as a hand chain) that is connected to a set of pulleys and a lifting hook. When the hand chain is pulled, it rotates the chain wheel, which in turn moves the load-bearing chain, causing the lifting hook to raise or lower the load.

SALIENT FEATURES

LIFTING HOOKS
heavy duty steel forged hooks, capable to withstand shock loads. free to swivel &rotate, design as per IS 15560.
BASE FRAME
“Robust & long life designed structure,which ensures the safety on safe loads and overloaded conditions. Moreover, it is more sustainable in hazardous conditions also.
LOAD CHAIN SPROCKET
Steel casted & hardened,designed to adjust precisely of load chain which ensures increased and long life of chain & load chain sprockets resulting minimum wear of parts.
GEARS
Gear Box is the heart of chain blocks,hence material selection,all manufacturing process of gears are done very precisely.All gears and pinions are case hardened as per IS Standards.
BRAKING ARRANGEMENT
self actuating screw disc type ensures full safety.steel forged pawl,hardened ratchet Gears.
HAND CHAIN WHEEL
heavy duty & large diameter of hand wheel gives smooth and effortless lifting.
LOAD CHAIN
Grade 80,alloy steel load chain as per IS Standard electrically resistance welded,heat treated,tested & calibrated.
BRAKE DISC
Asbestos free long lasting,minimum wear & more griping ability.
LOAD CHAIN GUIDE
It ensures to facilitate smooth & twist free monument of load chain. Technical Specification

Technical Specification

Chain-pulley-block-robo

Technical Specification

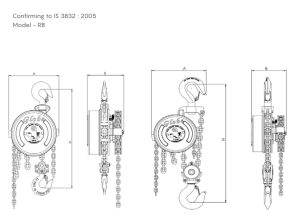

CHAIN PULLEY BLOCK – ROBO SERIES
Model RB1 RB1 RB1 RB2 RB2 RB2 RB3 RB3 RB3
Capacity TON 1 2 3 5 7.5 10 15 20 25
Standard lifting height MM 3 3 3 3 3 3 3 3 3
Over load test Ton 1.25 2.25 3.25 5.25 7.5 10.5 15.5 20.5 25.5
Load Chain Dia & Pitch MM Ø8×24 Ø8×24 Ø8×24 Ø10X30 Ø10X30 Ø10X30 Ø10X30 Ø10X30 Ø10×30
No. of falls Nos. 1 1 2 2 3 4 6 8 10
Hand effort KG 35 40 45 40 40 52 80 85 39
Velocity ratio app. 50.5 50.5 102 280 216 298 430 592 400
Dimension (mm) A MM 255 255 290 345 415 425 1040 1040 1040
B MM 185 185 185 220 220 220 210 284
C MM 30 31 40 53 62 62 93 130
D MM 35 38 50 59 76 82 122 170
H MM 515 515 720 850 960 980 1550 1400 1950
Packing measurement (LXWXH) CM 45x38x30 45x38x30 45x38x30 66x45x37 60x50x57 66x61x59 115x69x64 115x72x71
Net weight with 3 mtr. Lift KG 26 27 35 61 82 106 280 266 490
Gross Weight KG 34 35 43 73.5 106.5 140 328.5 557
Extra weight/Mtr. Lift KG 2.2 2.2 3.0 . 8.5 10.6 2O.1 27.8 27.8
Note:- Due to continuous development and improvement specifications listed above may be changed without notice.
