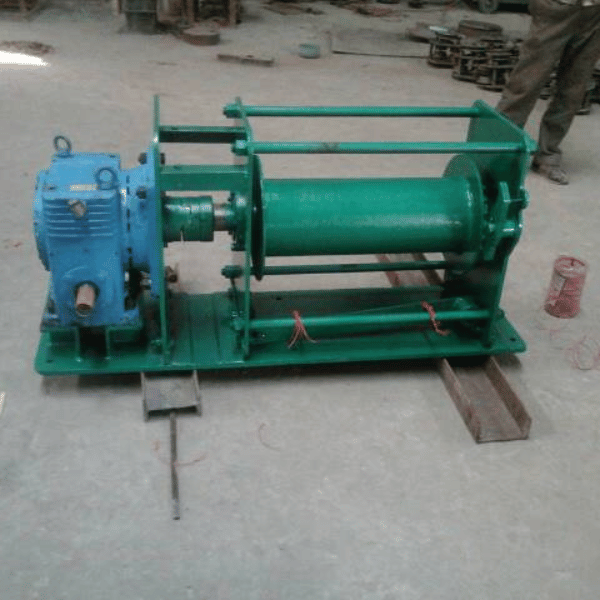

Special Winch (Customised)

These winches are used in a wide range of industries and applications, including construction, marine, and industrial settings, for tasks such as lifting heavy objects, pulling loads, or tensioning cables. Their versatility and ability to provide controlled lifting and pulling make them valuable tools in scenarios where manual effort alone would be insufficient or impractical.

SALIENT FEATURES

Design:  “Globe” Power Driven Winch Machines are designed as per IS-9507-1979 and are suitable for Heavy Duty Pulling applications. Speeds other then given in technical data can also be available. Generally, Winches with Right Hand Operation are manufactured; however, the same can supplied with left hand Operation also as per specific requirement only.

Base Frame: Fabricated with Rolled Steel Sections/Plates properly ribbed, floored with Chequerred plate for working area, Lifting lugs, Anchoring Holes for foundation.

Reducers: 1st stage reduction with Worm Reduction / Helical Gear Box of reputed make & other reduction with open Spur Gears & pinions.

Rope Drum:  Steel fabricated Rope drums duly machined, with flanges at both ends suitable for standard winding capacity 100 Mtr. of Wire Rope. Drums with larger winding capacity are also available.

Wire Rope: 6X19, IWRC construction, best Plough steel conforming to IS-2266 is supplied with Winch machine at extra cost.

Motor: High Starting Torque, Class ‘B’ Insulation, 40% CDF, 150 Starts/Hr, 415V, 50Hz, 3 Phase, A.C. Induction, Squirrel cage/Slippring motors conforming to IS-325 of reputed make like CROMPTOM/MARATHON/BHARAT BIJLEE LTD. etc.

Control & Control Panel: The Winch is operated by Push Button Station/Controller at 110V, fixed on machine. The control Panel is equipped with Triple Pole Reversing Contactors, MCB’S etc. of reputed make like ABB/SCHNEIDER/SIEMENS are housed in dust & vermin proof steel sheet panel Box. A step down transformer is also provided. Overload relay with Single Phasing protections are provided at extra cost.

Brake:  Electromagnetic/Electro Hydraulic thruster, Double Shoe Type Brake and Hand Operated brake provided as per requirement.

Limit Switch: Rotary Type Geared limit Switch is provided to prevent over hoisting/Travelling at extra cost, if required.

Test: All machines are tested at 25% overload.

Warrantee: 12 months warrantee from the date of delivery against any manufacturing defect at Ex. Works basis.

Improvements: We reserve the right of effecting any Technical improvement without any Prior notice.

SPECIALTIES:

• We design and manufacture winches for various applications of  industries and site project works.
• All our winches are 100% customized but comprising of IS standards.
• Our major segments: Hydro electric Plants, Railways, NTPC Ltd, NMDC ltd.
